Independent Motor Control for Stronger and More Stable Feeding (Repeated)
Beautiful and Precise Stitches

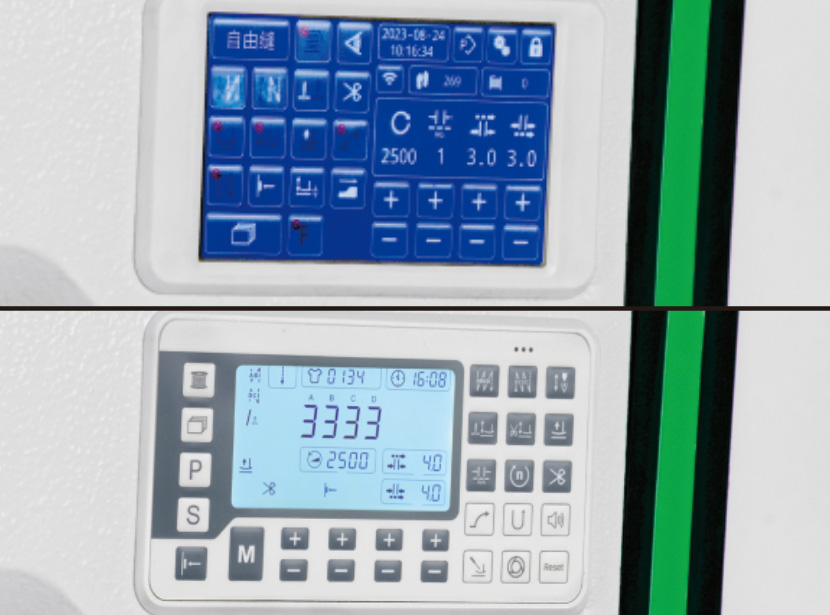

HD LCD Touch Screen, HD Button Screen Optional (Repeated)
Short Thread Ends (Repeated)
Independent Motor Control for Stronger and More Stable Feeding (Repeated)
Beautiful and Precise Stitches
HD LCD Touch Screen, HD Button Screen Optional (Repeated)
Short Thread Ends (Repeated)
Independent Motor Control for Stronger and More Stable Feeding (Repeated)
Beautiful and Precise Stitches
HD LCD Touch Screen, HD Button Screen Optional (Repeated)
Short Thread Ends (Repeated)
 |  |  |  |  |  |
| ZJ8650-D3D-ZM-C-02-V | 0~5mm/0~7.0mm | Manual: 7mm / Automatic: 8-11mm | Dp × 5 9#-21# Dp× 17 14#-21# | Short Thread End | 3000RPM |
| ZJ8650-D3D-ZM-B-02-V | 0~5mm/0~7.0mm | Manual: 7mm / Automatic: 8-11mm | Dp × 5 9#-21# Dp× 17 14#-21# | Short Thread End | 3000RPM |
| ZJ8650-D3D-ZH-C-02-V | 0~5mm/0~7.0mm | Manual: 7mm / Automatic: 8-11mm | Dp × 5 9#-21# Dp× 17 14#-21# | Short Thread End | 3000RPM |
| ZJ8650-D3D-ZH-B-02-V | 0~5mm/0~7.0mm | Manual: 7mm / Automatic: 8-11mm | Dp × 5 9#-21# Dp× 17 14#-21# | Short Thread End | 3000RPM |
| Specification | Single-Needle Series | Sewn Material Type | M: 0.5-1.5mm; H: 1.5-7mm | Automatic Presser Foot Lifting | √ | Operating Voltage | 220V |
| Oil Supply Method | Automatic Oil Supply (Rotary Hook) | Driving Method | Electromagnet Type + Stepper Drive | Automatic Backstitching | √ | Rated Power | 750W |
ZM: Medium-Heavy Material (Maximum Stitch Length: 4.5mm, 14#), equipped with M Needle Plate + Heavy Material Rotary Hook; ZH: Medium-Heavy Material (Maximum Stitch Length: 4.5mm, 16#);
D3D: Short Thread End Single Thread Trimming + Backstitching + Presser Foot Lifting; C: Color LCD Touch Screen; B: Button Screen; V: Qixing 3rd-Generation Stepper Electric Control
