Short Thread Ends

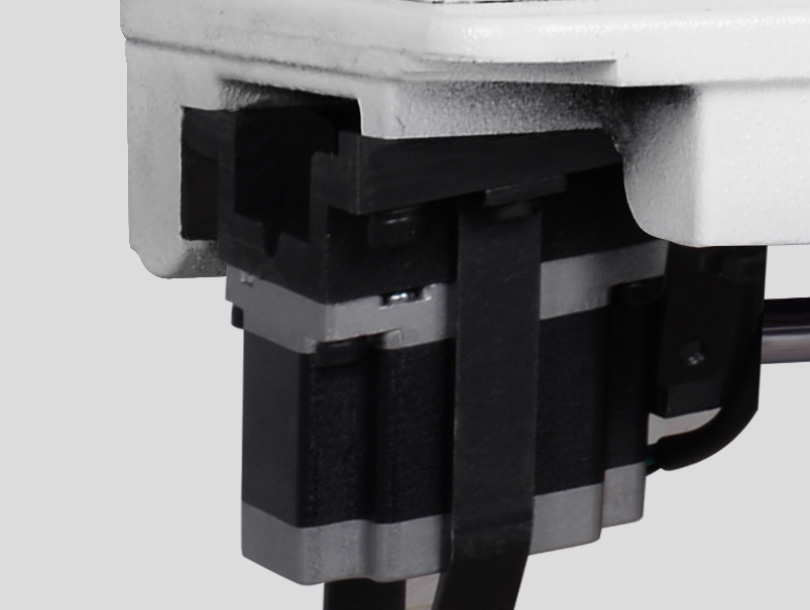

Independent Motor Control for Stronger and More Stable Feeding

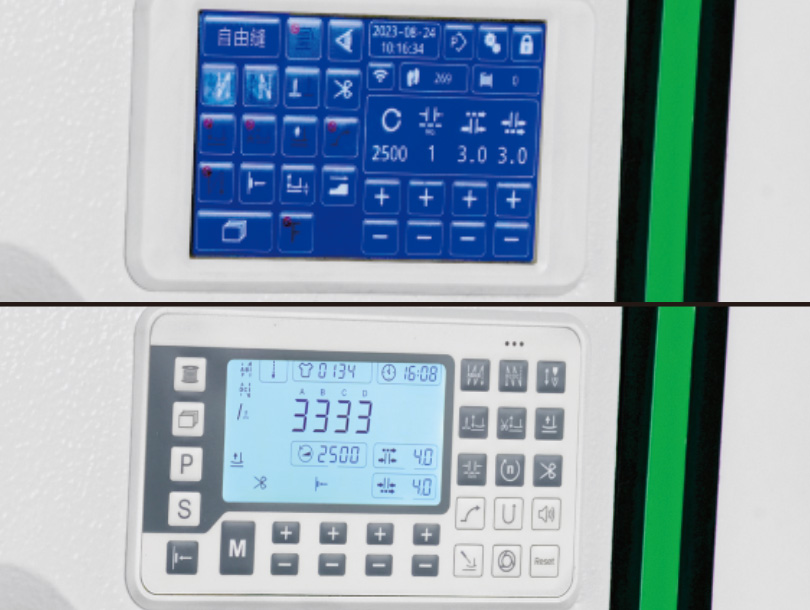

HD LCD Touch Screen, HD Button Screen (Optional)
Silent Reverse Sewing
Short Thread Ends
Independent Motor Control for Stronger and More Stable Feeding
HD LCD Touch Screen, HD Button Screen (Optional)
Silent Reverse Sewing
Short Thread Ends
Independent Motor Control for Stronger and More Stable Feeding
HD LCD Touch Screen, HD Button Screen (Optional)
Silent Reverse Sewing
 |  |  |  |  |  |
| E9630-D3-CM/M/ZM/ZH/H/CH-C/B-02-V | 0~5.0mm/0~7.0mm | Manual: 7mm / Automatic: 8-11mm | Dp × 5 9#-21# Dp× 17 14#-21# | √ | 3000 |
| E9630-D3D-ZM/ZH-C/B-02-V | 0~5.0mm/0~7.0mm | Manual: 7mm / Automatic: 8-11mm | Dp × 5 9#-21# Dp× 17 14#-21# | Short Thread End | 3000 |
| E9640-D3-M/ZM/ZH-N1.4/N1.8-C/B-02-V | 0~5.0mm | Manual: 7mm / Automatic: 8-11mm | Dp × 5 9#-21# Dp× 17 14#-21# | √ | 2000 |
| E9640-D3-H-N1.8/N2.0-C/B-02-V | 0~5.0mm | Manual: 7mm / Automatic: 8-11mm | Dp × 5 9#-21# Dp× 17 14#-21# | √ | 2000 |
| E9640-D3-CH-N2.0/2.2/2.4-C/B-02-V | 0~5.0mm | Manual: 7mm / Automatic: 8-11mm | Dp × 5 9#-21# Dp× 17 14#-21# | √ | 2000 |
| Specification | Single-Needle Series / Double-Needle Series | Sewn Material Type | M: 0.5-1.5mm; H: 1.5-7mm | Automatic Presser Foot Lifting | √ | Operating Voltage | 220V |
| Oil Supply Method | Automatic Oil Supply (Rotary Hook) | Driving Method | Electromagnet Type + Stepper Drive | Automatic Backstitching | √ | Rated Power | 750W/850W |
M: Lightweight Material (Maximum Stitch Length: 4.5mm, 14#), equipped with Lightweight Material Rotary Hook; ZM: Medium-Heavy Material (Maximum Stitch Length: 4.5mm, 14#), equipped with M Needle Plate + Heavy Material Rotary Hook; H: Heavy Material (Maximum Stitch Length: 4.5mm, 19#);
ZH: Medium-Heavy Material (Maximum Stitch Length: 4.5mm, 16#); CH: Extra-Heavy Material (Maximum Stitch Length: 4.5mm, 20#); M7: Lightweight Material (Maximum Stitch Length: 7mm, 14#), equipped with Lightweight Material Rotary Hook; H7: Heavy Material (Maximum Stitch Length: 7mm, 19#)
ZH7: Medium-Heavy Material (Maximum Stitch Length: 7mm, 16#); CH7: Extra-Heavy Material (Maximum Stitch Length: 7mm, 22#)
D3: Single Thread Trimming + Backstitching + Presser Foot Lifting; D3D: Short Thread End Single Thread Trimming + Backstitching + Presser Foot Lifting; N1.4~N2.4: Double-Needle Spacing 1.4mm~2.4mm, Default: Single Needle
