Improve Production Efficiency
Ensures continuous operation of the machine
The operator only needs to place the fabric and press the button switch, and a series of actions such as folding, sewing, ironing, and material receiving can be completed automatically, greatly increasing production efficiency by nearly 80%.
Advantages of Automatic Folding Machine
Adopts mechanical shaping for folding; sewing and ironing are completed in one go. The finished products are stacked in parallel, neat and tidy.
No technical requirements for operators; they can take up the job after simple training. One person can operate multiple machines, saving labor and costs.
Comparison of Process Time and Production Efficiency
| Folding Process | Traditional Machine | ZJ-USM8014 | |
| Sewing Short Sleeve Cuffs (Rolled Edge) | 6 seconds | 13 seconds | 7 seconds (continuous sewing) |
| Ironing | 7 seconds | ||
| Production Volume | 1,700 pieces | 3,000 pieces | |
Note: Calculated based on 75% of 8 working hours
Application Uses

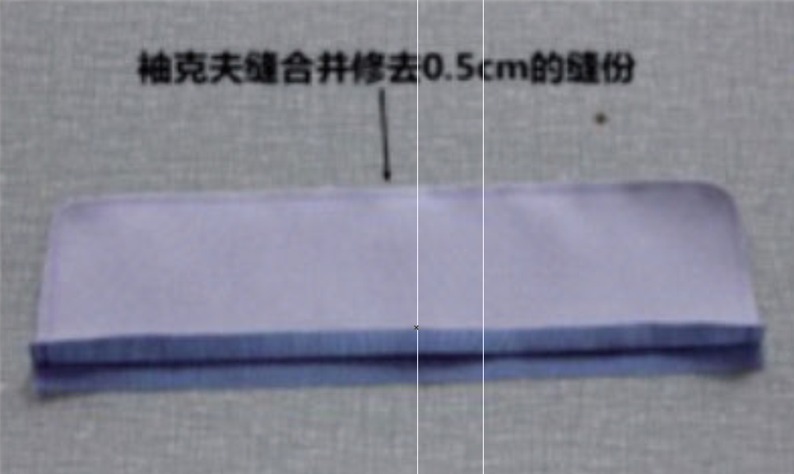

Can be used for double-fold and triple-fold edge processes in clothing, shirts, pocket openings, short sleeve cuffs, and luggage. This machine has a wide range of uses and can flexibly handle even small-batch production.
 |  |  |
 |  |
Technical Parameters
| Machine Model Name | ZJ-UA-A9200L-ZXJ-WB8 |
| Equipped Machine Head | A9200L |
| Maximum Sewing Speed | 4,000 rpm (revolutions per minute) |
| Sewing Range | 500 mm |
| Maximum Stitch Length | 5 mm |
| Needle Used (Model at Shipment) | DBx1/11# |
| Upper Thread Breakage Detection Device | Panasonic Through-Beam Sensor |
| Stacked Pieces Space Height | 150 mm |
| Sewing Modes | 10 types |
| Machine Dimensions (Length * Width * Height) | 2100*950*1150mm |
UA: Woven Fabric Category; ZXJ: Folding Machine
