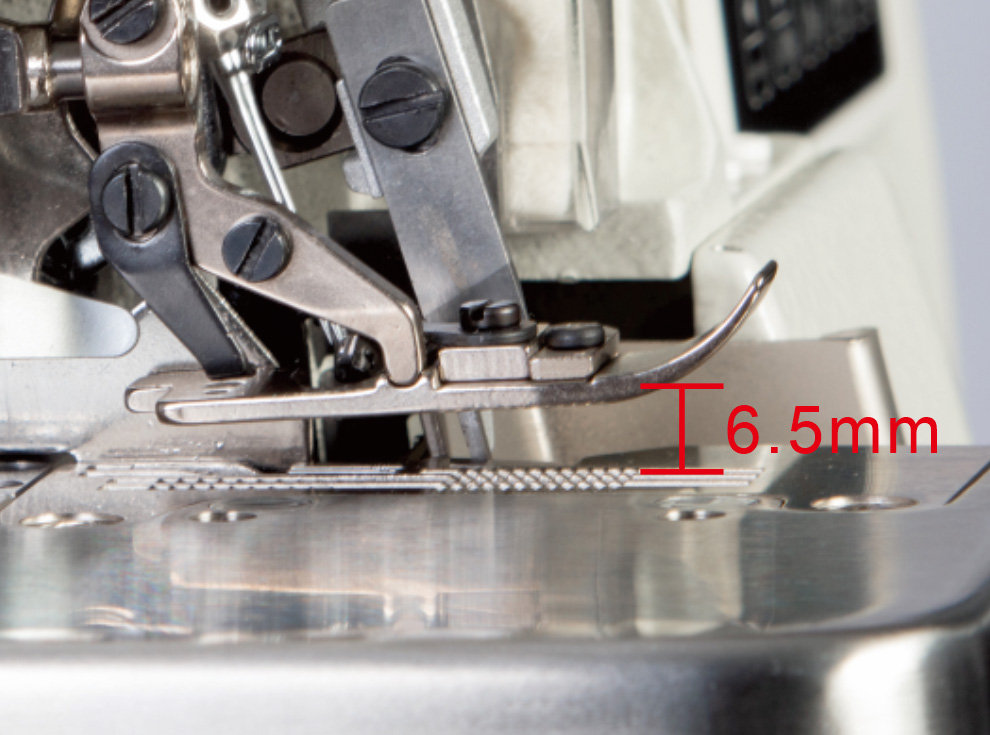

One-Key Presser Foot Lift for Easy Sewing of Thick Fabrics

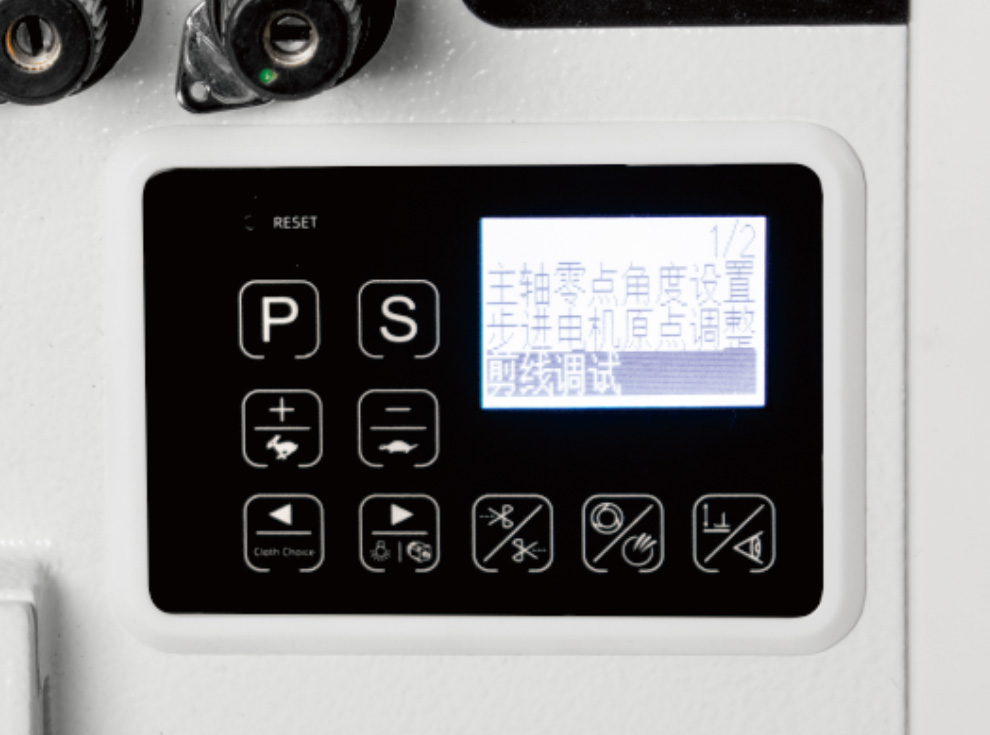

Intelligent Touch Control, One-Key Adjustments

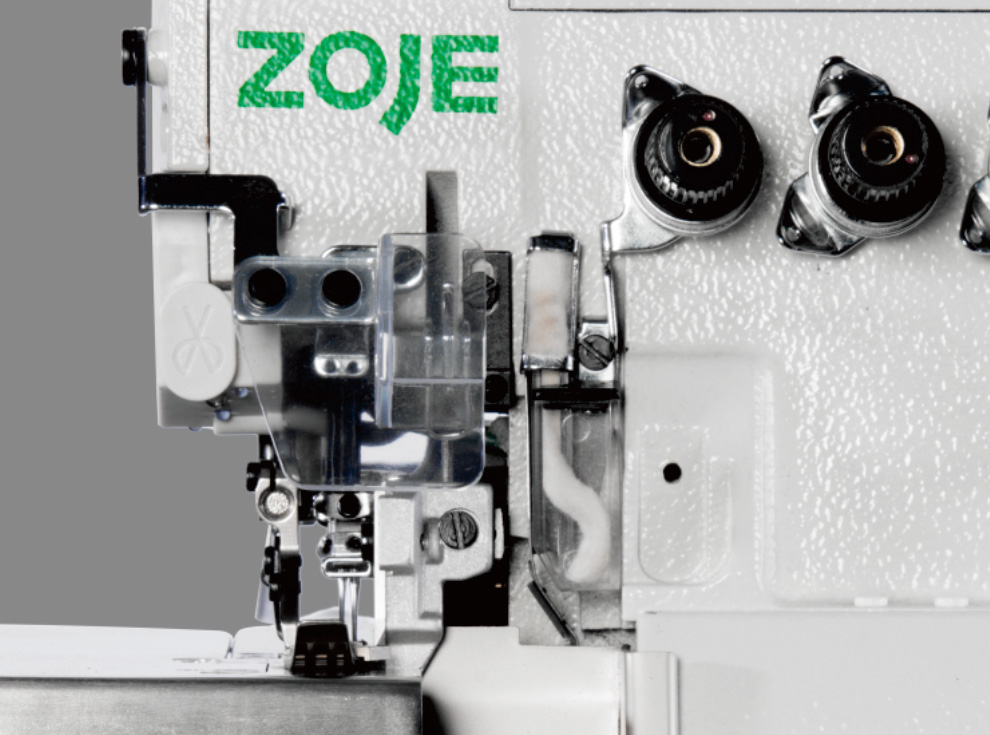

Optimized Thread Path Structure for Stable Stitches

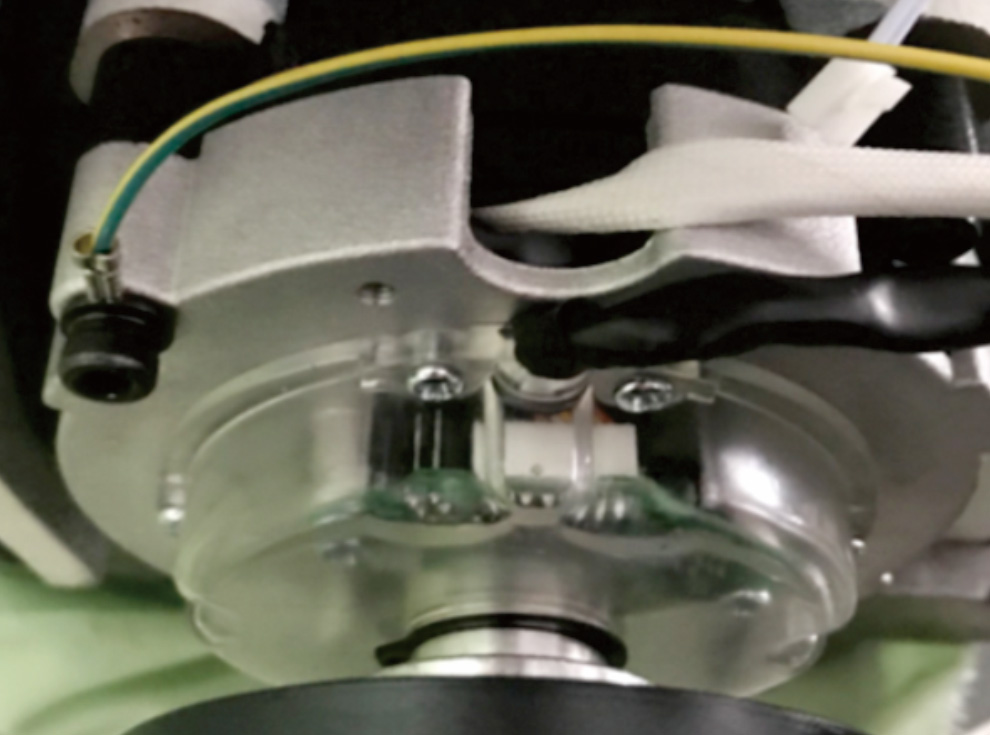

Servo Motor for Ultra-Fast Start/Stop
One-Key Presser Foot Lift for Easy Sewing of Thick Fabrics
Intelligent Touch Control, One-Key Adjustments
Optimized Thread Path Structure for Stable Stitches
Servo Motor for Ultra-Fast Start/Stop
One-Key Presser Foot Lift for Easy Sewing of Thick Fabrics
Intelligent Touch Control, One-Key Adjustments
Optimized Thread Path Structure for Stable Stitches
Servo Motor for Ultra-Fast Start/Stop
 |  |  |  |  |  |  |  |  |  |
| B7510-17-MD2 | DCX27 11# | 1 | 3 | 0 | 4 | 0.5-3.8 | 0.7-2 | 7 | 7000 |
| B7510-13-MD2 | DCX27 11# | 2 | 4 | 2 | 2+4 | 0.7-4.5 | 0.7-1.5 | 7 | 7000 |
| B7510-13BL-MD2 | DCX27 11# | 2 | 4 | 2 | 2+4 | 0.7-4.5 | 0.7-1.5 | 5 | 7000 |
| B7510-13S7-MD2 | DCX27 11# | 2 | 4 | 2 | 2+4 | 0.7-4.5 | 0.7-1.5 | 7 | 7000 |
| B7510-38-MD2 | DCX27 14# | 2 | 5 | 3 | 3+4 | 0.5-3.8 | 0.7-2 | 6 | 7000 |
| B7510-38S7-MD2 | DCX27 14# | 2 | 5 | 3 | 3+4 | 0.5-3.8 | 0.7-2 | 6 | 7000 |
| B7510-70-MD2 | DCX27 14# | 2 | 5 | 5 | 5+5 | 0.5-3.8 | 0.7-2 | 6 | 7000 |
| B7510-86-MD2 | DCX27 21# | 2 | 5 | 5 | 5+6 | 0.7-4.5 | 0.7-1.5 | 7 | 7000 |
| B7510-86H-MD2 | DCX27 21# | 2 | 5 | 5 | 5+6 | 0.7-5 | 0.7-1.4 | 7 | 7000 |
| B7510-355-D2 | DCX27 11# | 3 | 6 | 5 | 5+2+4 | 0.5-3.8 | 0.7-2 | 6 | 7000 |
| B7510-365-D2 | DCX27 21# | 3 | 6 | 5 | 5+3+3 | 0.7-5 | 0.7-1.4 | 7 | 7000 |
13: Four thread ordinary sewing, 17: three thread ordinary sewing, 13BL: four thread wrapped thread head, 13S7: four thread large needle spacing, 38: five thread ordinary sewing, 38S7: five thread large needle spacing, 70: five thread wide edge sewing, 86: five thread extremely thick material wrapped sewing, 86H: five thread denim material, 355: six thread ordinary sewing, 365: six thread thick material sewing.
MD2: Step 2 Automatic
