B9500-38 | B9500-86 | B9500-70 | B9500-13 |
 |  |  |  |
B9500-13H Four line thick material | B9500-180 | B9500-17 Three line wrapping seam | B9500-16S2 |
Product Manual
Instruction Manual
Parts Manual

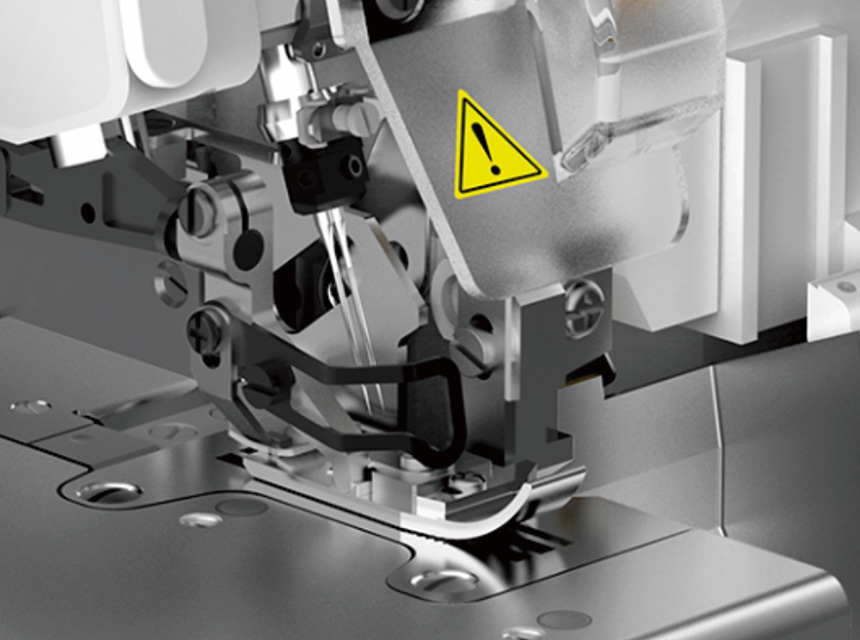

Automatic Thread Trimming and Presser Foot Lifting Function
New Touch Screen
Voice Navigation, One-Key Reset Function

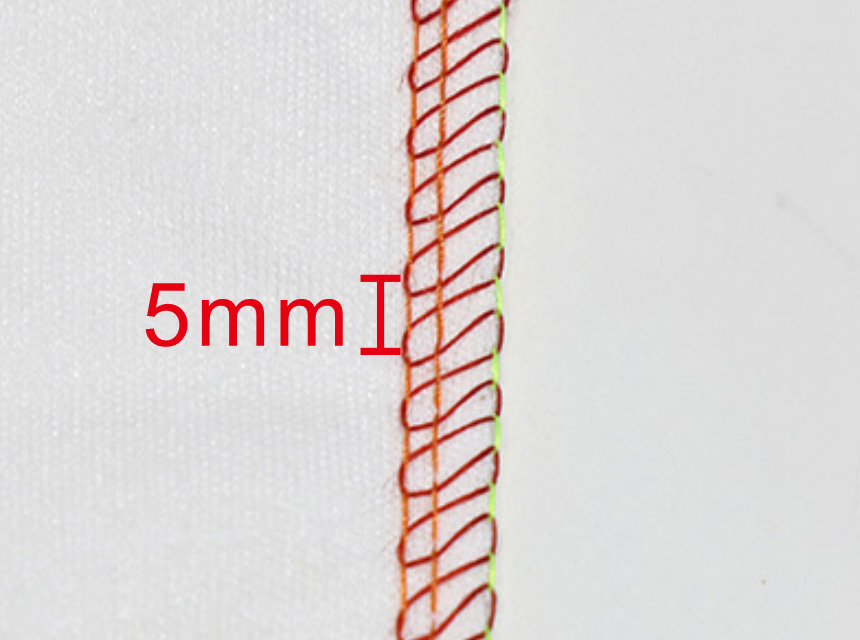

Large Stitch Length Design Improves Feeding Efficiency (Repeated)

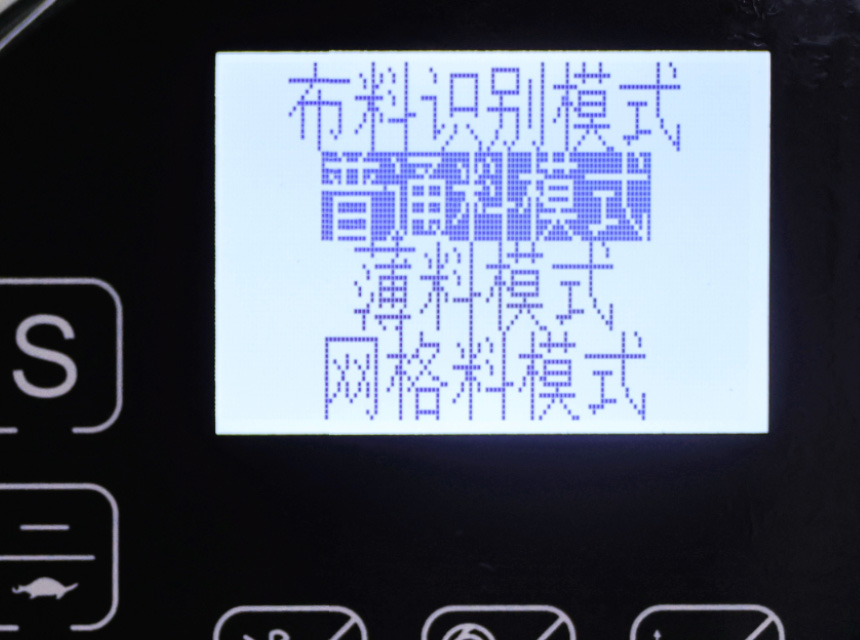

Fabric Intelligent Recognition, Simple Operation, Wide Adaptation
Automatic Thread Trimming and Presser Foot Lifting Function
New Touch Screen
Voice Navigation, One-Key Reset Function
Large Stitch Length Design Improves Feeding Efficiency (Repeated)
Fabric Intelligent Recognition, Simple Operation, Wide Adaptation
Automatic Thread Trimming and Presser Foot Lifting Function
New Touch Screen
Voice Navigation, One-Key Reset Function
Large Stitch Length Design Improves Feeding Efficiency (Repeated)
Fabric Intelligent Recognition, Simple Operation, Wide Adaptation
| | | |
B9500-38 | B9500-86 | B9500-70 | B9500-13 |
| | | |
B9500-13H Four line thick material | B9500-180 | B9500-17 Three line wrapping seam | B9500-16S2 |
 |  |  |  |  |  |  |  |  |  |
| B9500-17-* | DCX27 11# | 1 | 3 | 0 | 4 | 0.5-3.8 | 0.7-2 | 5.5 | 6500 |
| B9500-16S2-* | DCX27 11# | 1 | 3 | 0 | 1.5 | 0.5-3.8 | 0.7-2 | 5.5 | 6500 |
| B9500-13-* | DCX27 11# | 2 | 4 | 2 | 2+4 | 0.7-4.5 | 0.7-1.5 | 5.5 | 6500 |
| B9500-13H-* | DCX27 11# | 2 | 4 | 2 | 2+4 | 0.5-3.8 | 0.7-2 | 5.5 | 6500 |
| B9500-13-SD3 | DCX27 11# | 2 | 4 | 2 | 2+4 | 0.7-4.5 | 0.7-1.5 | 5.5 | 6500 |
| B9500-02x250-* | DCX27 11# | 2 | 4 | 5 | 5+4(24帶寬) | 0.5-3.8 | 0.7-2 | 5.5 | 6500 |
| B9500-38-* | DCX27 14# | 2 | 5 | 3 | 3+4 | 0.5-3.8 | 0.7-2 | 5.5 | 6500 |
| B9500-38-SD3 | DCX27 14# | 2 | 5 | 3 | 3+4 | 0.5-3.8 | 0.7-2 | 5.5 | 6500 |
| B9500-70-* | DCX27 14# | 2 | 5 | 5 | 5+5 | 0.5-3.8 | 0.7-2 | 5.5 | 6500 |
| B9500-86-* | DCX27 21# | 2 | 5 | 5 | 5+6 | 0.7-4.5 | 0.7-1.5 | 7 | 6500 |
| B9500-180 | DCX27 11# | 1 | 3 | 0 | 4 | 0.5-3.8 | 0.7-2 | 5.5 | 6500 |
| B9500-181 | DCX27 11# | 2 | 4 | 2 | 2+4 | 0.5-3.8 | 0.7-2 | 5.5 | 6500 |
| B9500-355-* | DCX27 11# | 3 | 6 | 5 | 5+2+4 | 0.5-3.8 | 0.7-2 | 5.5 | 6500 |
| B9500-365-* | DCX27 21# | 3 | 6 | 5 | 5+3+3 | 0.7-5 | 0.7-1.4 | 7 | 6000 |

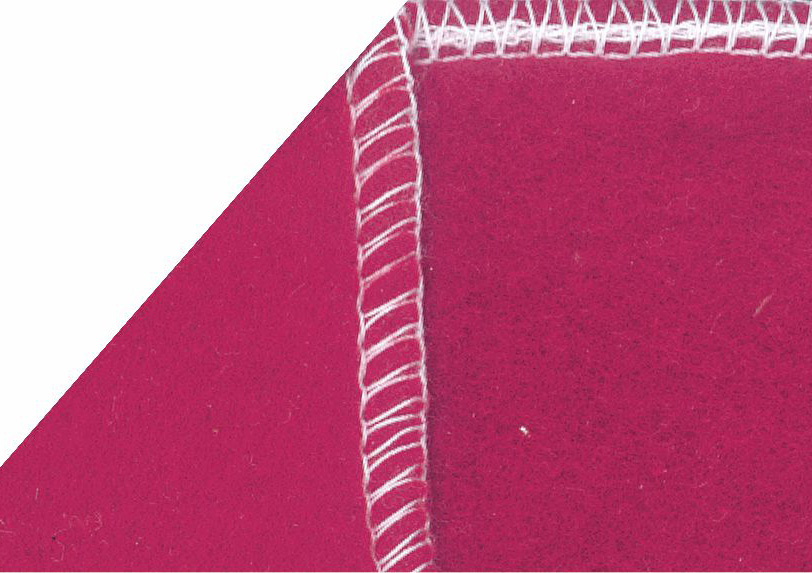

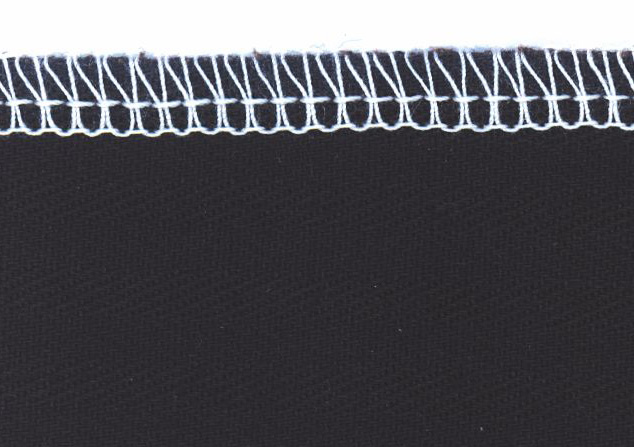

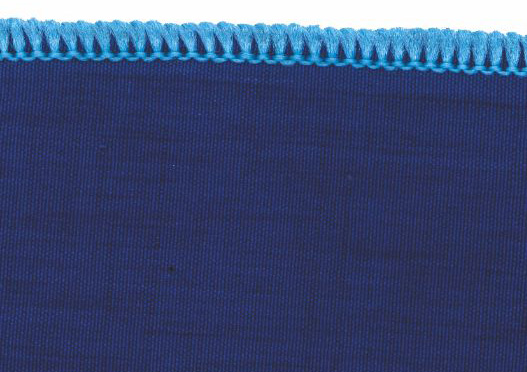

13: Four line ordinary seam, 17: three line ordinary seam, 16S2: three line narrow edge seam, 13H: four line thick material wrapped seam, 180: three line reverse seam, 181: four line reverse seam, 02x250: double chain seam, 38: five line ordinary seam, 70: five line wide edge seam, 86: five line extremely thick material wrapped seam, 355: six line ordinary seam, 365: six line thick material seam.
SD3: Side suction wind cutting line three automatic
*Representative options include ED single lift presser foot, ED2 electric two automatic (cutting wire+lifting presser foot), ED3 electric three automatic (cutting wire+picking presser foot+electric suction), PD3 pneumatic three automatic (cutting wire+lifting presser foot+pneumatic suction), default: no automatic function.
