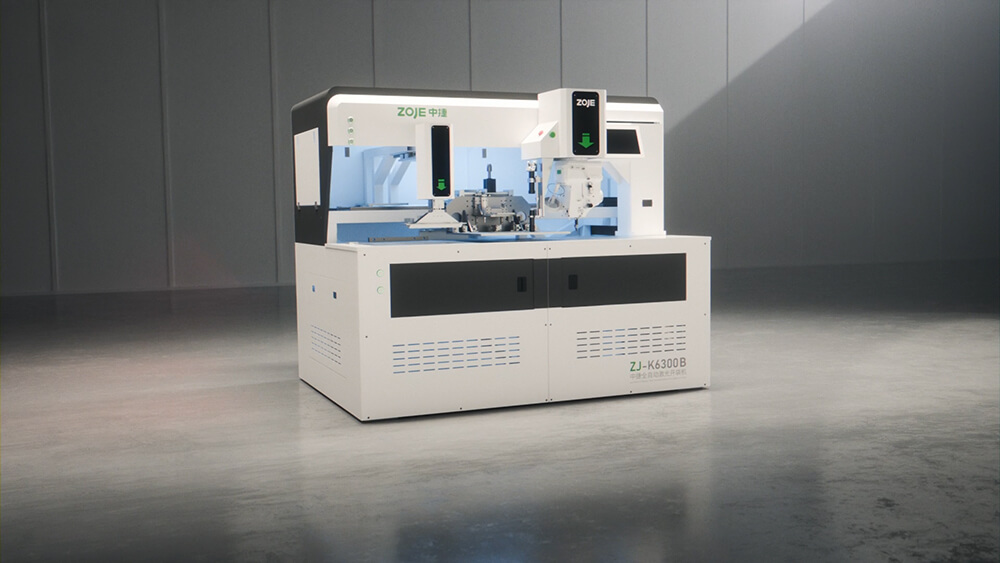

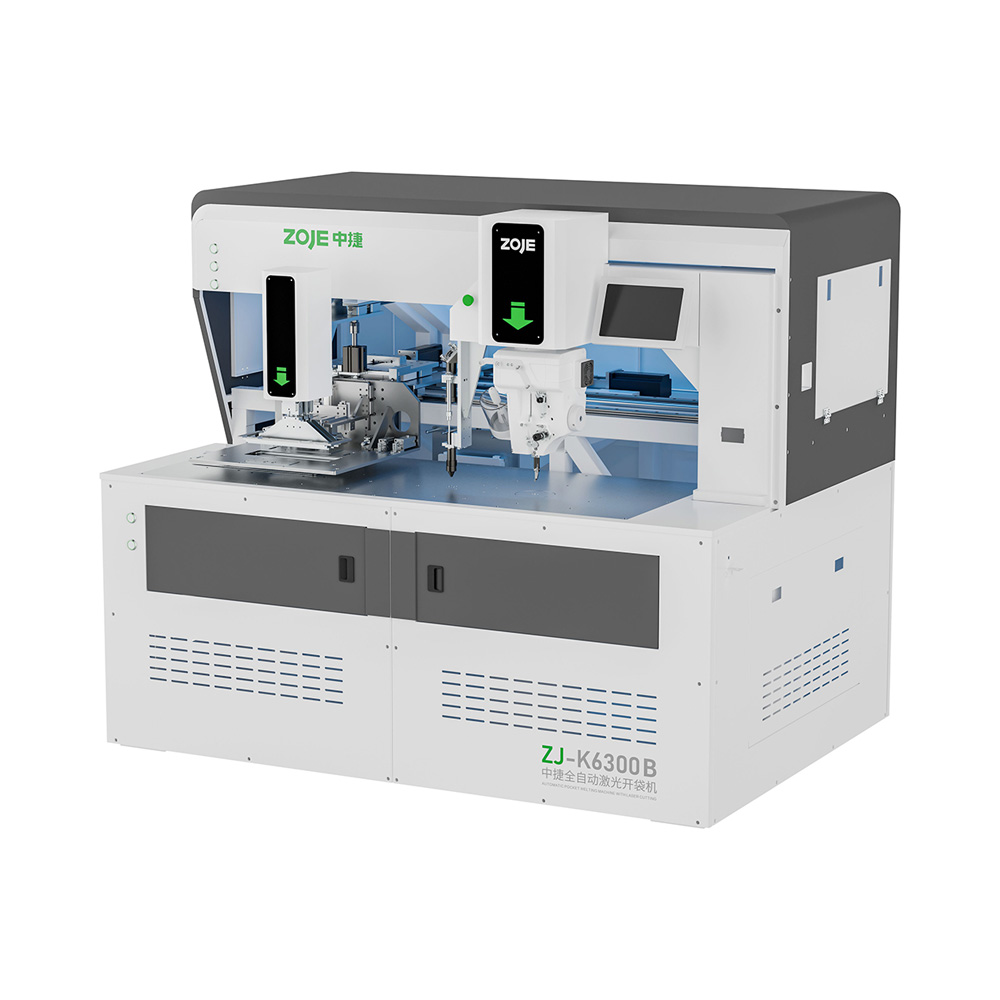

ZJ-K6300B Automatic Pocket Welting Machine With Laser Cutting

Advantage:Eliminate Seam Allowance Challenges, Consistent Quality Assurance

Product Manual

Instruction Manual

Parts Manual

Free Consultation Hotline

400-807-9881

0576-87338345

Video

Introduction

Parameters

Product Introduction

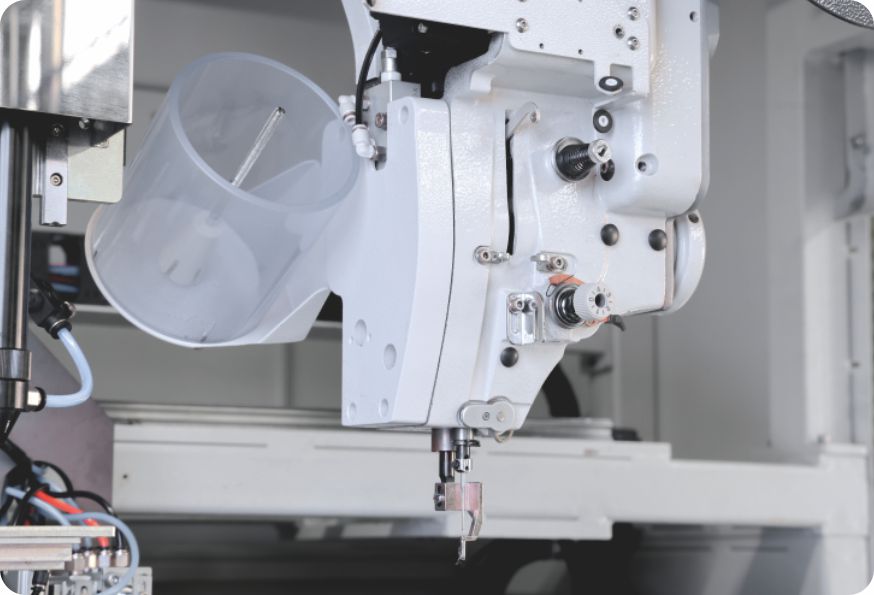

Equipped with an elevatable head to prevent needle jamming on thick materials, minimize materials waste and provide larger workspace for placing cutting pieces

Equipped with an elevatable head to prevent needle jamming on thick materials, minimize materials waste and provide larger workspace for placing cutting pieces

Equipped with an elevatable head to prevent needle jamming on thick materials, minimize materials waste and provide larger workspace for placing cutting pieces

Maximum customizable length up to 290mm,meeting diverse pocket welting applications

Maximum customizable length up to 290mm,meeting diverse pocket welting applications

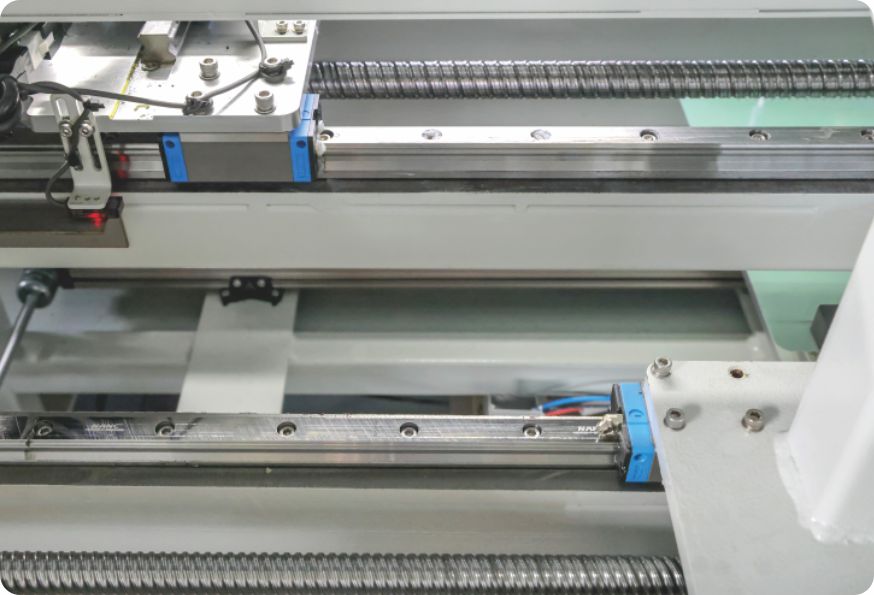

Pocket welting efficiency increased by 33%,with cycle times of 15-18 seconds for mock pockets with bartack and 20-25 seconds for 3D pockets

Pocket welting efficiency increased by 33%,with cycle times of 15-18 seconds for mock pockets with bartack and 20-25 seconds for 3D pockets

Precision-controlled material feeding length ensure natural sewing edges, delivering straighter and more unfirm sewing edges

Precision-controlled material feeding length ensure natural sewing edges, delivering straighter and more unfirm sewing edges

Equipped with an elevatable head to prevent needle jamming on thick materials, minimize materials waste and provide larger workspace for placing cutting pieces

Equipped with an elevatable head to prevent needle jamming on thick materials, minimize materials waste and provide larger workspace for placing cutting pieces

Maximum customizable length up to 290mm,meeting diverse pocket welting applications

Maximum customizable length up to 290mm,meeting diverse pocket welting applications

Pocket welting efficiency increased by 33%,with cycle times of 15-18 seconds for mock pockets with bartack and 20-25 seconds for 3D pockets

Pocket welting efficiency increased by 33%,with cycle times of 15-18 seconds for mock pockets with bartack and 20-25 seconds for 3D pockets

Precision-controlled material feeding length ensure natural sewing edges, delivering straighter and more unfirm sewing edges

Precision-controlled material feeding length ensure natural sewing edges, delivering straighter and more unfirm sewing edges

Equipped with an elevatable head to prevent needle jamming on thick materials, minimize materials waste and provide larger workspace for placing cutting pieces

Equipped with an elevatable head to prevent needle jamming on thick materials, minimize materials waste and provide larger workspace for placing cutting pieces

Maximum customizable length up to 290mm,meeting diverse pocket welting applications

Maximum customizable length up to 290mm,meeting diverse pocket welting applications

Pocket welting efficiency increased by 33%,with cycle times of 15-18 seconds for mock pockets with bartack and 20-25 seconds for 3D pockets

Pocket welting efficiency increased by 33%,with cycle times of 15-18 seconds for mock pockets with bartack and 20-25 seconds for 3D pockets

Precision-controlled material feeding length ensure natural sewing edges, delivering straighter and more unfirm sewing edges

Precision-controlled material feeding length ensure natural sewing edges, delivering straighter and more unfirm sewing edges

Technical parameter

Customized Maximum Sewing Area290X40(mm)Power SupplyAC 220V 50HZ, Need To Be Grounded
Standard Maximum Sewing Area200×40(mm)Spindle MotorServo Motor
Maximum Sewing Speed2800rpmLanguage SelectionChinese, English, Japanese, Korean, Turkish
Speed Setting100-2800RPMMachine HeadZOJE Elevating Machine Head
Stitch Length0.1-12.7Sewing Area Oil SupplyMini Oil
Pattern Storage

Internal Storage, USB Storage

Hourly Production Rate120-180(pcs)
Stitch Formation Mechanism TypeRotary HookApplicable FabricsSuitable for Knitted and Woven Fabrics
Use of NeedleDP17*14#Maximum Pocket Size290×40(mm)
Presser Foot DrivePneumaticElectrical Control SystemSystemtop
CylinderAirtacDimensions2030X1400X1700(mm)
Machine WeightGross Weight 1 ton
